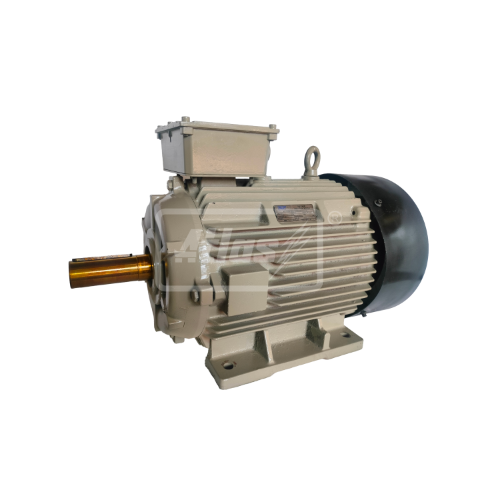

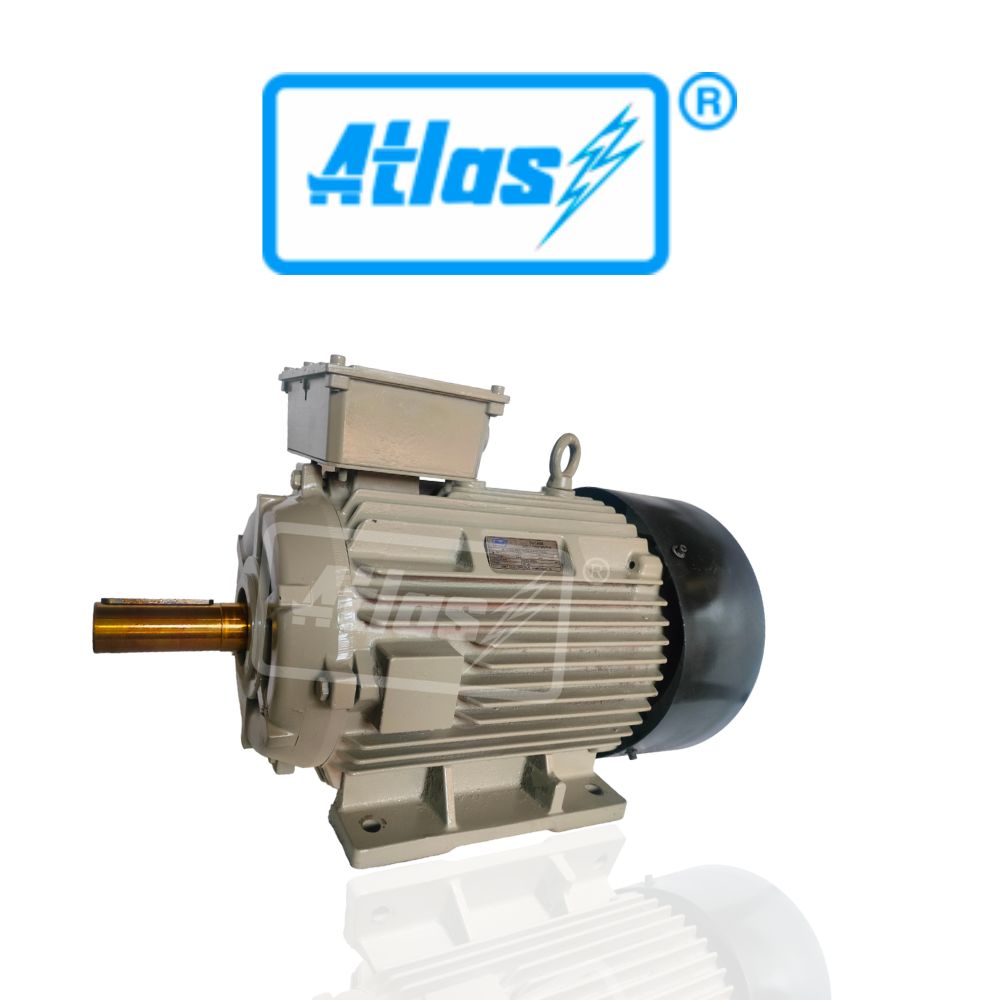

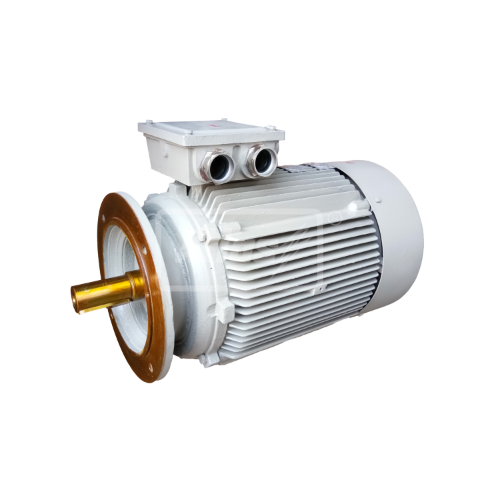

Low Speed Motor
| Category | Details |
|---|---|
| Company Name | AMIT ELECTRICALS |
| Brand | Atlas |
| Product Name | Low Speed Motor |
| Operation | Motor runs directly on low speed without use of gear or drive |
| Brake Type | Not Applicable |
| Range of Production |
Power: 0.5 to 7.5 HP (0.37 to 5.5 KW) RPM: 600, 500, 375, 300, 250 |
| Mounting Types | Foot and Flange |
| Frame Material | IEC standard frame |
| Insulation | Standard insulation suitable for industrial use |
| Ratings | Designed for continuous and industrial duty cycles |
| Voltage & Frequency | 3 Phase, 415V, 380V, 240V |
| Protection | Standard industrial protection |
| Shaft & Rotor | Output Shaft: Hollow and Solid both available |
| Bearings & Lubrication | Standard bearing system suitable for low-speed operation |
| Thermal Overload Protection | Available on request |
| Terminal Box | Top position, optional left/right positions available |
| Earthing Terminals | Minimum two: one in terminal box, one on foot |
| Application |
Fan Hoist Crane Pharma Steel Plant Textile Chemical Cement Mining |
| Features |
Highly efficient Direct drive without gearbox Reliable performance Cost-effective Smooth operation Precision engineering |
Product Features & Configuration
Amit electrical supplier of Highly Efficient Low Speed Motor. Our rich industry experience in this field enabled us to provide a wide range of Low-Speed Motor to our reputed clients. The offered motors are widely applicable and demanded for Steel, Cement, Chemical, mining industries Etc. In Application Are Coatomer Don’t want to us Gear or drive in that application Motor Run Directly on Low Speed
| RANGE OF LOW-SPEED MOTOR | |
|---|---|
| Kw | 0.37 to 5.5 |
| Hp | 0.5 to 7.5 |
| RPM | 600, 500, 375, 300, 250 |
| Voltage | 3 Phase, 415, 380, 240 |
| Mounting | Foot and flange |
| Output Shaft | Hollow and solid both available |
| Frame | IEC |
| Application | Fan, Hoist, Crane, Pharma, Steel Plant, Textile etc. |
Mounting Type
- Foot (B3)
- lange (B5)
- Face (B14)
- Foot with Flange (B35)
- Foot with Face (B34)
Features
- High efficient
- Noise Free
- Vibrating free
- Low running cost
- Durable
- Smooth finishing
- Cost effective
- Precision design
Frame
Single Phase Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.
Voltage and Frequency
Single Phase Motor Are Supply volts 220 ± 5% 3 phase 50 Hz. ± 3% we are also able to Supply motor in 110 volts on HZ 60 Also.
Insulation
Single Phase Motors are supply with class B insulation as standard feature. Also supply “F” on request of customer.
Protection
We are supplying motor with Ingress protection 44 as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.
Shaft Direction
All Single Phase Motor are supply with clock wise shaft rotation. It also possible of reveres Direction rotation. We are manufacture single reversible single phase motor.
Centrifugal Switch
Centrifugal switch is hart of Single phase motor. A centrifugally operated automatic Mechanism used in conjunction with split phase and other type of single-phase induction motors. Centrifugal cutout switches will open or disconnect the starting winding when the rotor has reached a predetermined speed and reconnect it when the motor speed falls below it. Without such device, the starting winding is susceptible to rapid overheating and subsequent burnout.
Winding Design
Capacitor start induction run motors with high starting torques suitable for use in machine tools, small compressors, booster pumps, atta chakkis etc. Where high lord inertia and or frequent staring stopping is involved. Resistant start induction run motor with moderately high starting torques ideally suited for optimum performance in applications like commercial juicers, industrial sewing machine, surgical pumps ECT
Shaft & Rotor
Single Phase Motor Rotor is positive locking with Shaft key joint so that cannot move on high Full lord Torque. Shafts are made by En-8 or En-9 material. Single Phase motors are of high pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise
Bearings & Lubrication
Single phase motor Bearings are adequately lubricated with lithium based high temp up to 150deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.
Enclosure
Single phase motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooling).
Thermal Over protection
We can also supply motor with T.O.P Switch on Demand of Customer. It can provide Single phase motor extra safety form over lord protection.
Terminal Box
All Single phase Motor Supply with Terminal box on top position For Foot mounted (B3). Others position terminal box like left or right supply on customer request.
Earthing Terminals
All Single Phase Motor provided with minimum two earthling terminals. One in the terminal box and other on foot.
Paints
All Single-phase motors are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.
