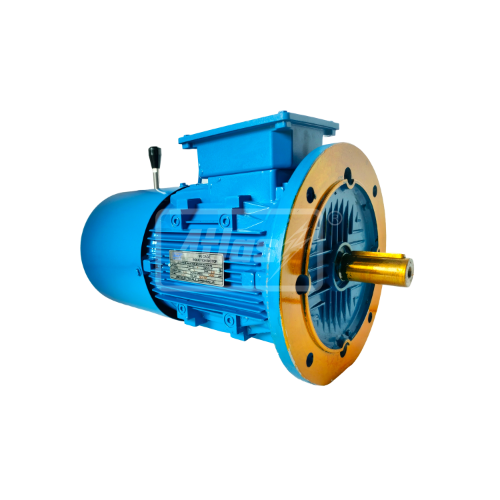

Dual Speed Brake Motor
| Category | Details |
|---|---|
| Company Name | AMIT ELECTRICALS |
| Brand | Atlas |
| Product Name | Dual Speed Brake Motor |
| Operation | Combination of Dual Speed Motor and Brake. Used in applications requiring dual speed with braking. |
| Brake Type | Fail Safe (Power off - Shaft lock) Normally off type (Power on - Shaft lock) |
| Range of Production |
Two Speed Brake Motor Power: 0.25 to 20 HP (0.18 to 37 KW) Poles: 2/4, 2/6, 2/8, 4/6, 4/8, 6/8 (3000/1500, 3000/1000, 3000/750, 1500/1000, 1500/750, 1000/750) Voltage: 415 ± 5% 50 Hz ± 3% (Optional: 220, 380, 460, 525 V at 50/60 Hz) |
| Mounting Types | Foot (B3) Flange (B5) Face (B14) Foot with Flange (B35) Foot with Face (B34) |
| Frame Material | Robust cast iron frame with integral feet. Aluminum body available up to 100L frame (on request). |
| Insulation | Class F (Standard) Class H (on request) |
| Duty |
S1: Continuous Duty S2: Short Time Duty S3: Intermittent Periodic Duty S4: Intermittent Duty with Starting S5: Intermittent Duty with Starting and Electrical Braking |
| Protection |
IP44 (Standard) Optional: IP54, IP55 (on request) |
| Shaft & Rotor |
Shaft: High carbon steel for exceptional strength and rigidity. Rotor: High-pressure E.C. Grade aluminum die-cast. Dynamically balanced for low vibration and noise. |
| Bearings & Lubrication |
Bearings: C3 ball bearings Lubrication: Lithium-based grease (up to 150°C) |
| Thermal Overload Protection | Optional T.O.P. switch available on customer request for additional safety. |
| Terminal Box | Top position for Foot mounted (B3). Left/right positions available (on request). |
| Earthing Terminals | Minimum two: one in terminal box, one on foot. |
| Application |
Pharmaceuticals Cranes, Hoists, Lifts Construction Chemical Industries Food Equipment Ceramic Industries Machine Tools (for various applications) |
| Features |
High Torque Noise Free High Performance Durable Smooth Finishing Cost-Effective Precision Design |
Product Features & Configuration

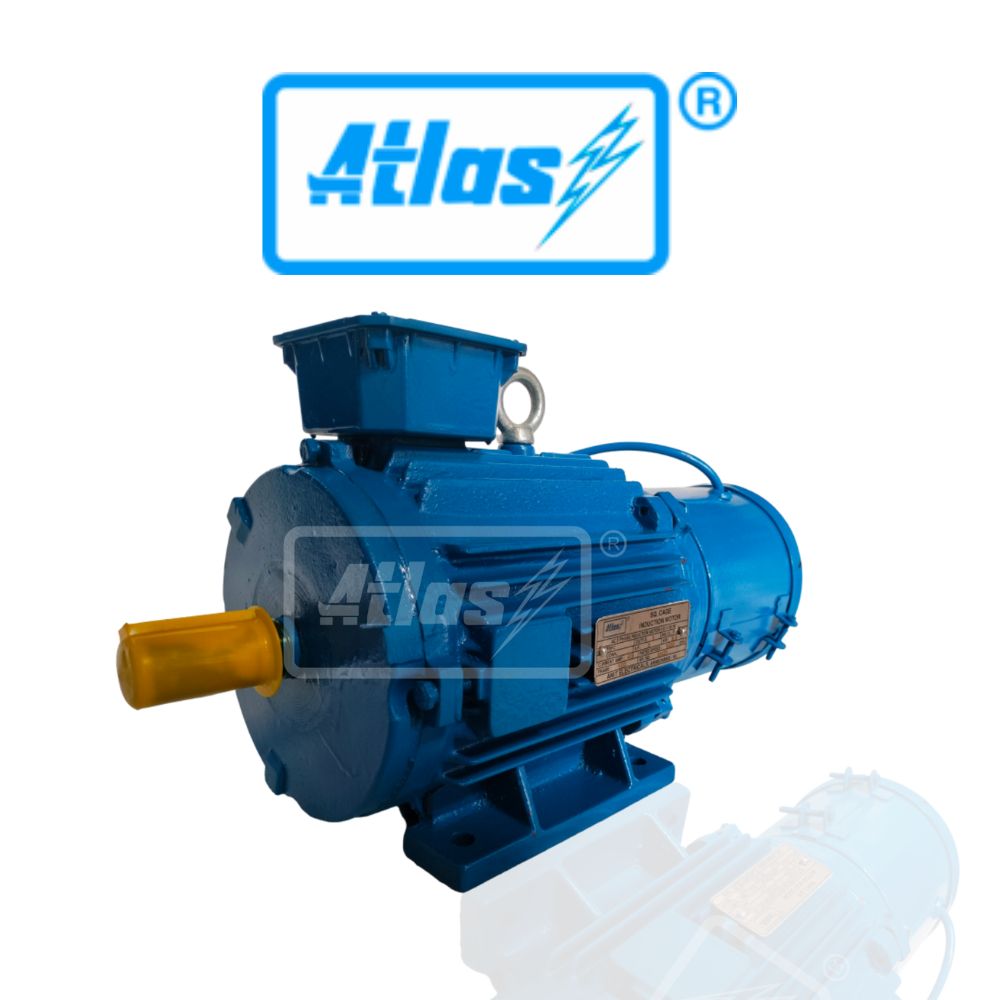

We are manufacture, exporter and supplier of “ATLAS” Make Dual Speed Brake Motor. It Combination of Dual Speed Motor and Brake It Use in many applications where machine or Equipment require dual speed with Braking
RANGE OF PRODUCTION
We have wide production Range in Two Speed Brake Motor.
0.25 to 20 H.P. (0.18 to 37 Kw)
Two speed motor are offer in 2/4, 2/6, 2/8, 4/6, 4/8, & 6/8 poles. (3000/1500, 3000/1000, 3000/750, 1500/1000, 1500/750 & 1000/750)
Two Speed Brake Motors available in single winding 2/4, 4/8, 4/6 and other pole in double winding. Two speed motor are suitable to 415 ± 5 % 50 Hz ± 3% And combined ± 6%. On customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 also
BRAKE TYPE
we are manufacture, exporter and supplier of two type of Dual Speed brake Motor.
Fail Safe Brake (When power off shaft lock)
Fail safe dual speed brake motor in case of power supply off ensuring further to a precise stop and quick braking action, the security of sudden inter venations in case of an unintentional power supply failure (i.e. power supply black-out, equipment failure) The braking action is obtained without axial sliding of shaft and provides equal braking torque in both directions of rotations.
Normally off type brake (when power supply on shaft lock)
Normally off type brake is totally different type of brake in compare of failsafe. it works when supply on. It helps to stop machine when need to stop. Like when need to machine or equipment in situation of emergency.
Mounting Type
- Foot (B3)
- Flange (B5)
- Face (B14)
- Foot with Flange (B35)
- Foot with Face (B34)
Features
- High Torque
- Noise Free
- High performance
- Durable Smooth finishing
- Cost effective
- Precision design
Duty
- Continues duty (S1)
- Short time duty (S2)
- Intermittent periodic duty (S3)
- Intermittent duty with Starting (S4)
Frame
Two Speed Brake Motors are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.
Insulation
All Dual Speed Brake Motor is supplied with ‘F’ class insulation but temperature rise restricted to ‘B’ class.
Protection
We are supply Dual Speed Brake Motor with Ingress protection 44 as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.
Shaft
Dual Speed Brake Motor Shaft are Made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection.
Rotor
Dual Speed Brake Motor Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. It’s made motor low amplitudes of Vibration & noise.
Bearings & Lubrication
Bearings are adequately lubricated with lithium based high temp up to 150 deg. All Dual Speed motor are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.
Enclosure
Two Speed Motor Brake Motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooled).
Thermal Overload Protection
We can also supply Dual Speed Brake Motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.
Terminal Box
Dual speed Motor Supply with Terminal box on top position For Foot mounted (B3). Others position box like left or right supply on customer request.
Earthing terminals
Motor provided with minimum two earthling terminals. One in the terminal box and another on foot.
Paints
All motor is painted with semi glossy synthetic enamel paint. However, sp. Paint is available on request.
Applications
Dual Speed Brake Motor are used in Many applications which multiple speeds are required like Pharmaceuticals, Crane, hoist, lift, construction, Chemical industries, Food equipment, Ceramic industries Machine tools for different application. We can also provide dual speed gear motor, dual brake motor.
