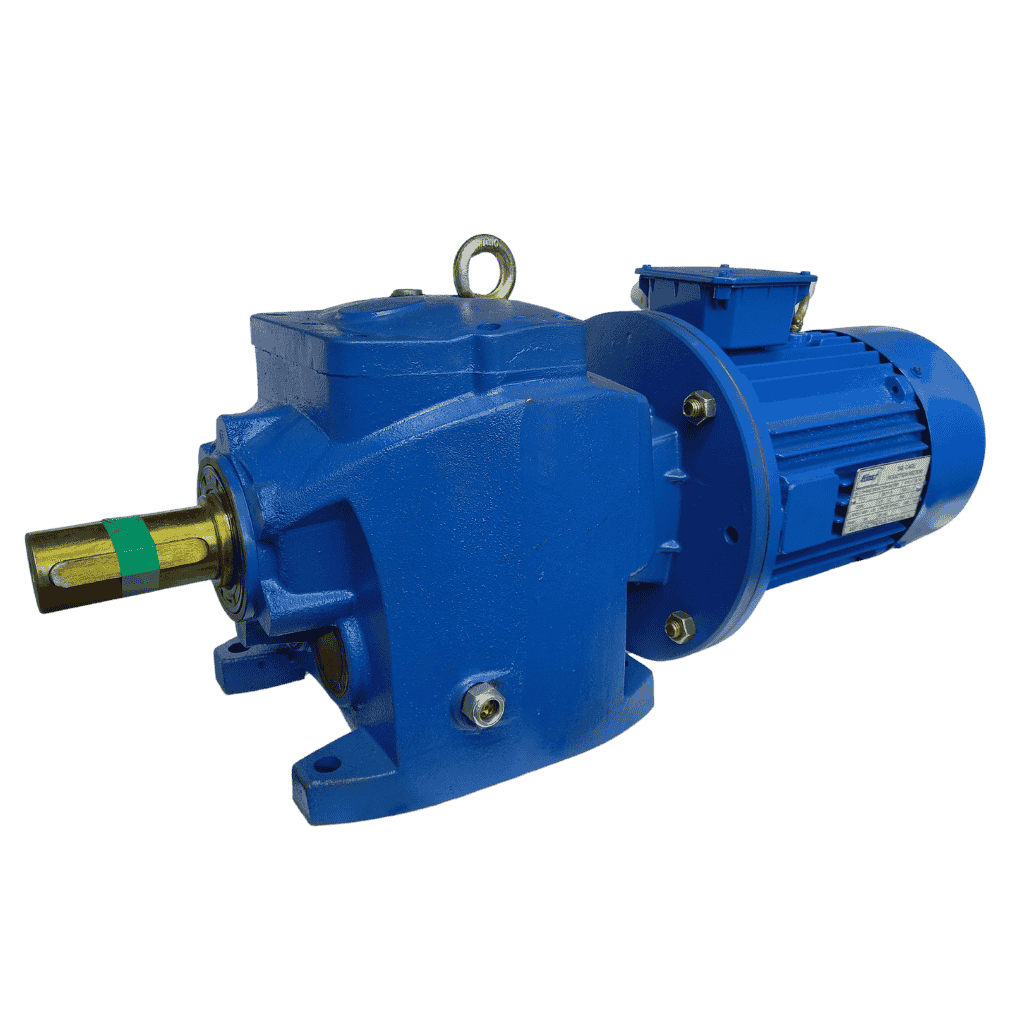

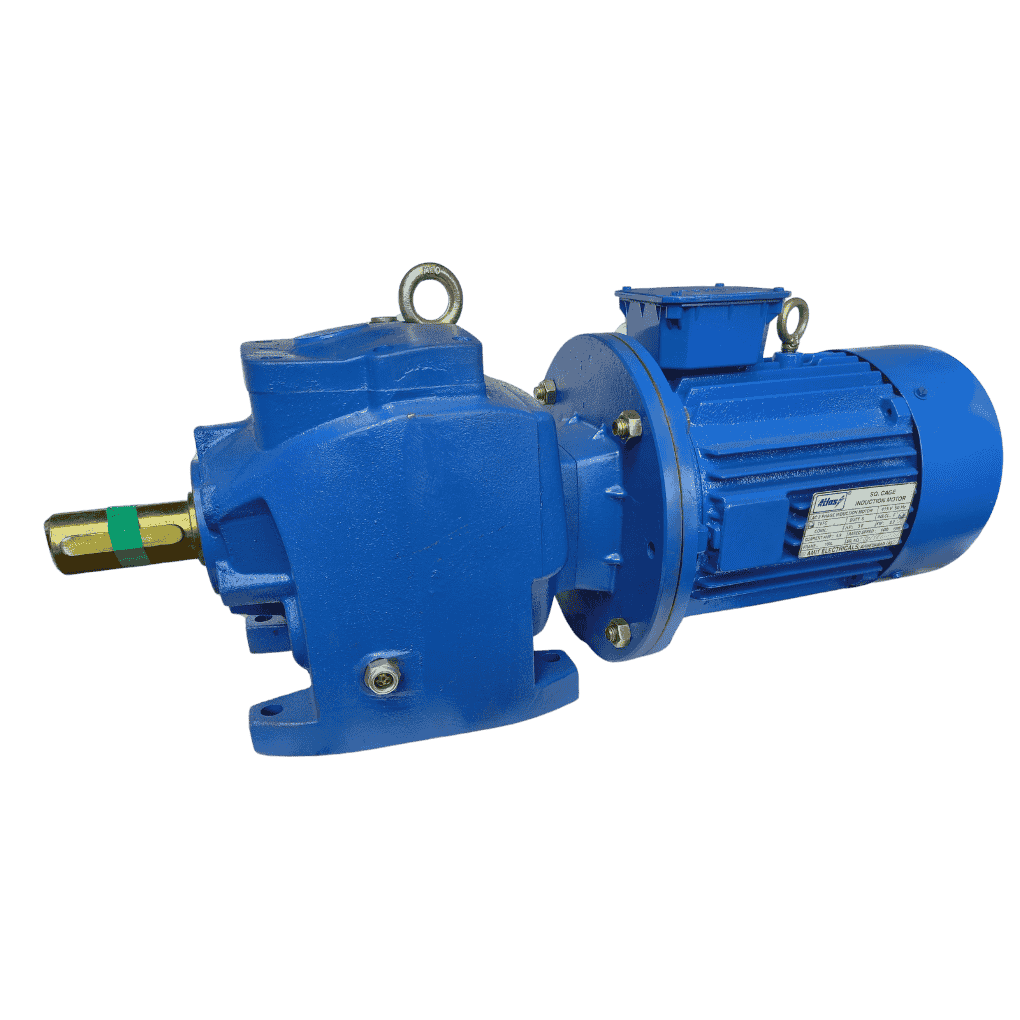

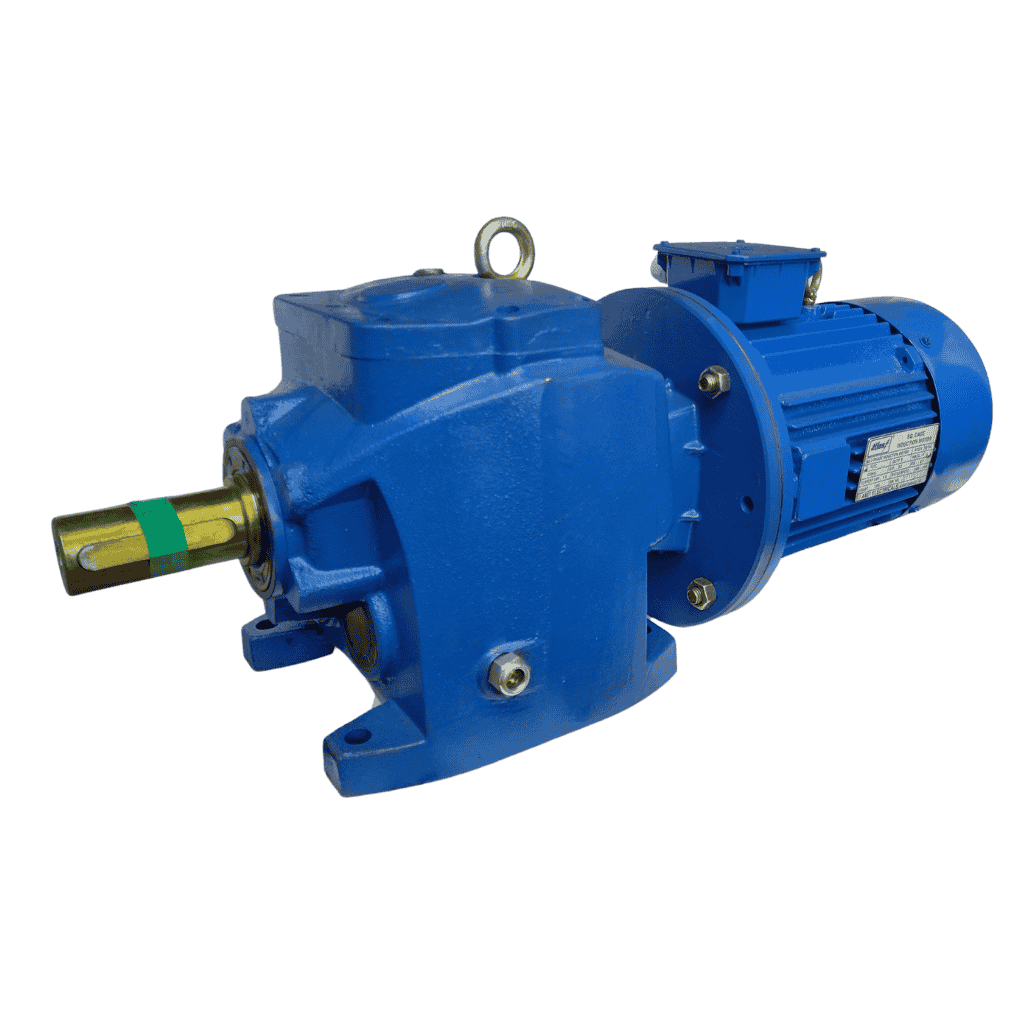

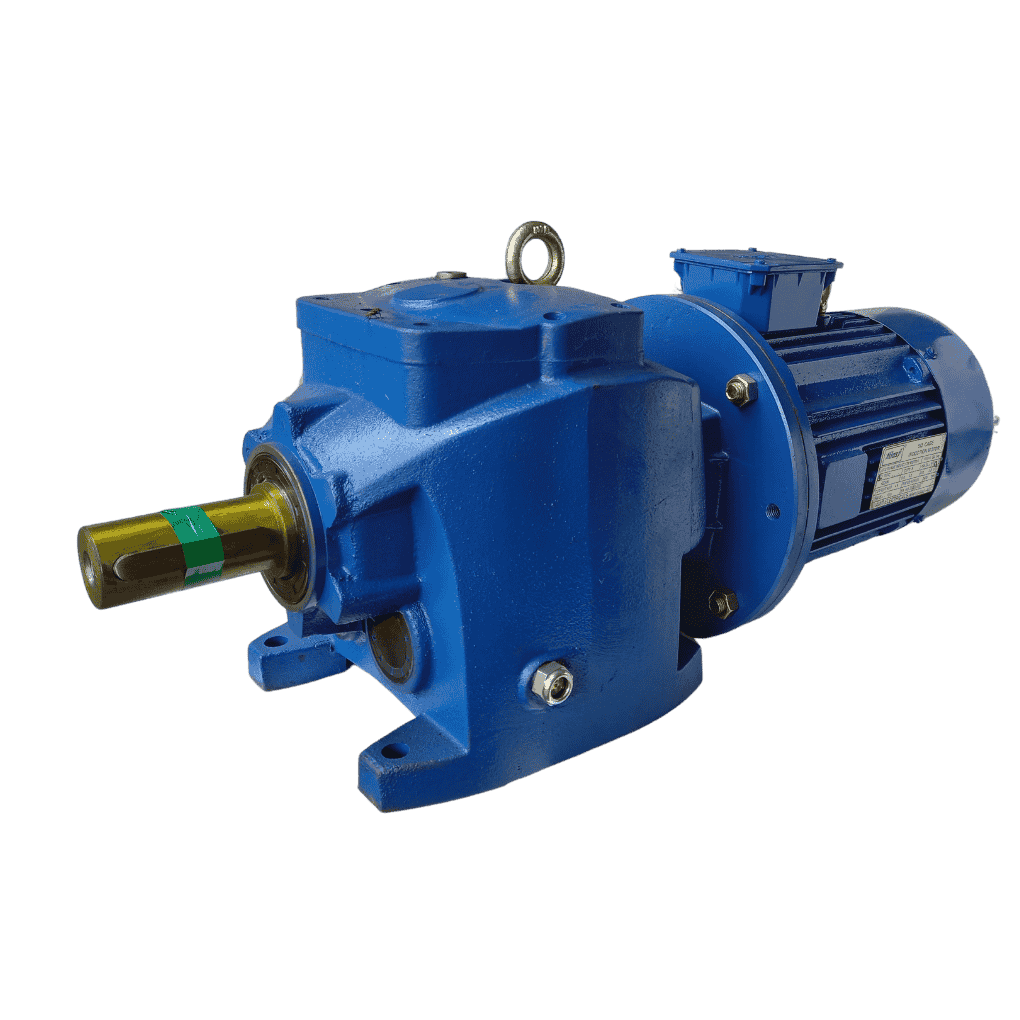

Cycloidal Speed Reducers

Specification Details
Company Name AMIT ELECTRICALS
Product Name Cycloidal Speed Reducers
Range Ratio 11, 17, 23, 29, 35, 43, 59, 71, 87
Horsepower Range Three Phase: 0.37 kW to 5.5 kW (0.37 to 10 Hp) for 415 ± 5% volts, 50 Hz ± 3% - Single Phase: 0.1 kW to 2.2 kW (0.15 to 3 Hp) for 215 ± 5% volts, 50 Hz ± 3%
Voltage and Frequency Three Phase: 415 ± 5% volts, 50 Hz ± 3%
Single Phase: 215 ± 5% volts, 50 Hz ± 3% Other voltage and frequency options available on request
Mounting Foot and Flange Mounting for Various Applications
Body Material Robust, rugged cast iron frame with integral feet
Shaft Made of case carburized alloy steel
Solid shaft made of high-grade alloy steel
Shaft is accurately made and super finished
Oil Seals Superior quality oil seals to ensure complete oil-tight performance
Lubrication Automatically and positively lubricated by splash from sump
Uses synthetic lubricant for long-lasting gear lubrication
Applications Conveyors
Packaging
Crane Travel
Material Handling Lifts
Machine Tools Applications
Features Excellent performance and high efficiency
Long life with minimal breakdown
Strong impact resistance
Wide output reduction ratio
Large torque
Stable running with low noise
High wear resistance
Wide applicability

Cycloidal R Series Gear Motor and Reducer – Compact Power, Maximum Efficiency

What Is a Cycloidal R Series Gear Motor and Reducer?

A Cycloidal R Series Gear Motor and Reducer is a high-performance drive solution designed for applications requiring precise speed reduction, high torque output, and compact construction. Unlike traditional gear mechanisms, cycloidal drives use a unique rolling motion that minimizes backlash, increases durability, and ensures smooth operation.

Ideal for heavy-duty applications and automation systems, these gear motors are trusted across industries for their reliability, efficiency, and long service life.

Key Features of Cycloidal R Series Gear Motors

1. High Torque Density

Cycloidal gear reducers deliver exceptional torque output in a smaller size, making them suitable for space-restricted machinery.

2. Shock Load Resistance

Thanks to their internal rolling mechanism and robust gear design, these motors absorb and withstand heavy shock loads without damage.

3. Low Backlash Operation

The cycloidal gear mechanism minimizes backlash, which is crucial for precision positioning in automated systems.

4. Compact and Lightweight

The R Series gear motor design ensures high power transmission with a reduced footprint—perfect for modern industrial machinery.

5. Quiet & Smooth Operation

Cycloidal drives generate less noise and vibration compared to conventional gears, enhancing performance in sensitive environments.

Benefits of Using Cycloidal R Series Gear Motors and Reducers

1. Energy Efficiency

Designed with precision and low friction, these gear motors reduce energy loss during transmission, improving overall system efficiency.

2. Durability in Harsh Environments

Constructed with hardened steel components and sealed housings, R Series gear reducers are resistant to wear, corrosion, and contaminants.

3. Versatile Mounting Options

Available in various mounting types—foot-mounted, flange-mounted, and shaft-mounted—for integration into any mechanical setup.

4. Maintenance-Free Operation

Pre-lubricated and sealed units minimize the need for frequent servicing, reducing downtime and maintenance costs.

Applications of Cycloidal R Series Gear Motor and Reducer

These gear motors are engineered for a wide range of demanding industrial applications, such as:

  • Conveyor Systems
  • Mixers and Agitators
  • Packaging Machinery
  • Textile and Printing Equipment
  • Material Handling Systems
  • Automated Production Lines
  • Robotic Arms and Positioning Units

Wherever precision, torque, and reliability are critical, the Cycloidal R Series Gear Motor and Reducer delivers unmatched performance.

How to Choose the Right Cycloidal Gear Reducer

Before selecting a model, evaluate the following factors:

Load Requirements

Determine the torque and speed needed for your specific application to select the correct gear ratio and motor capacity.

Mounting Orientation

Choose a mounting option that fits your equipment’s configuration to ensure secure and efficient integration.

Operating Environment

For high-temperature, dusty, or corrosive environments, opt for models with appropriate sealing, coating, and thermal ratings.

Duty Cycle and Efficiency Rating

Match the motor’s duty cycle and efficiency with your operational requirements to ensure long-lasting, reliable performance.

Why Choose Atlas Electrical’s Cycloidal R Series Gear Motors?

At Atlas Electrical, we provide precision-engineered Cycloidal R Series Gear Motors and Reducers designed for industrial-grade reliability and performance. Here’s what sets us apart:

  • Rugged Design: Built for continuous operation and heavy-duty loads
  • Custom Configurations: Available in multiple ratios and sizes
  • ISI-certified Quality: Meets rigorous national standards
  • Efficient Customer Support: Technical assistance from selection to post-sales service
  • Quick Delivery & Stock Availability

Whether you need a single unit or bulk supply for OEM applications, Atlas Electrical ensures you get durable, high-performance solutions at competitive prices.

Conclusion

The Cycloidal R Series Gear Motor and Reducer is the perfect solution for industries demanding compact design, high torque, and superior reliability. With advanced engineering and robust construction, these motors provide long-term value and efficiency in even the most demanding environments.

Choose Atlas Electrical for proven performance, technical excellence, and unmatched customer support.
