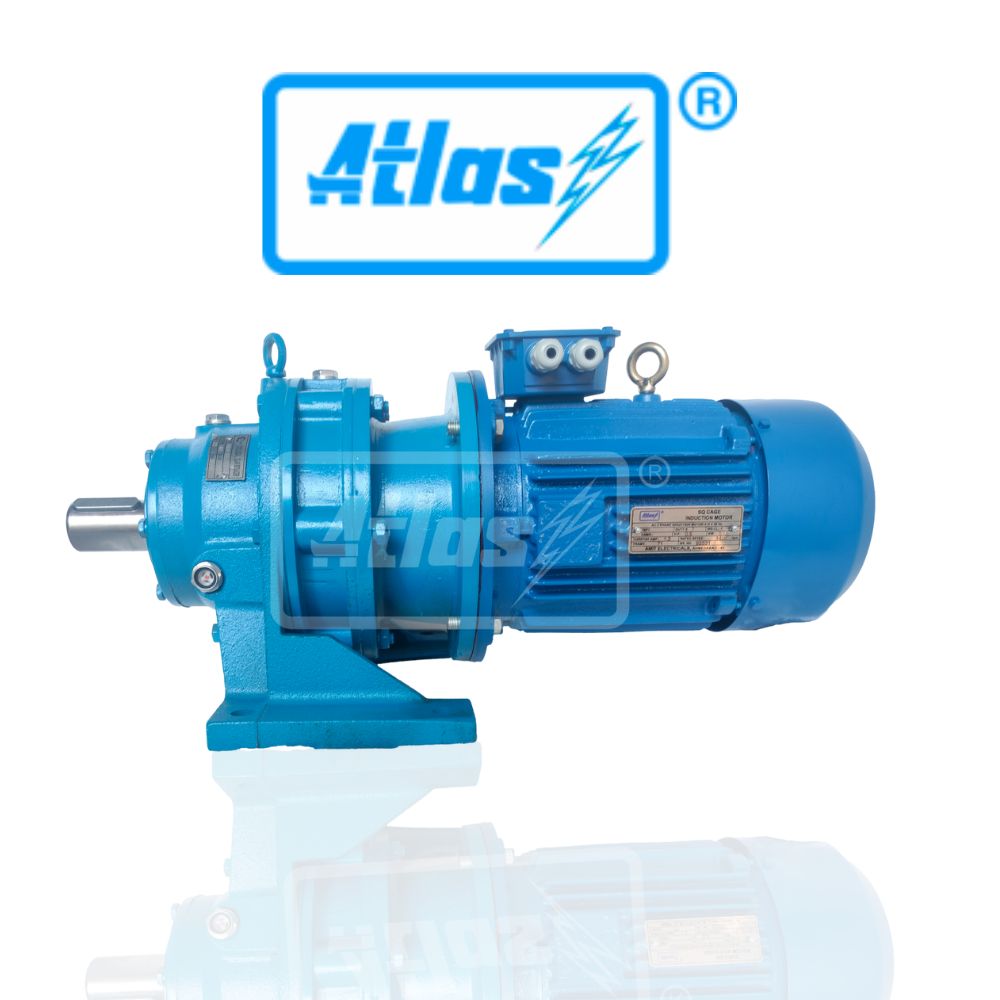

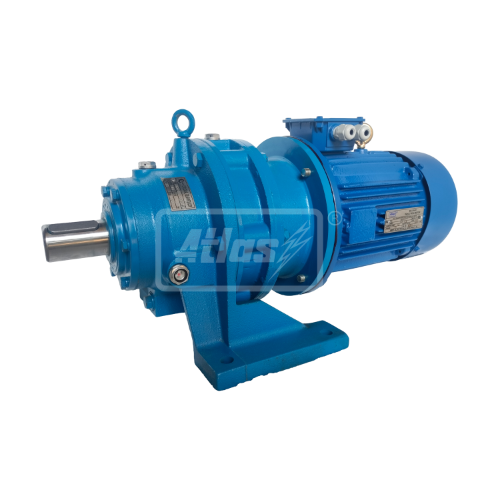

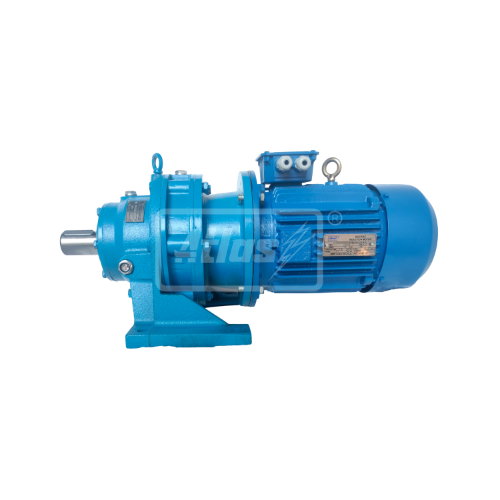

Cycloid Gear Motor
| Category | Details |
|---|---|
| Company Name | AMIT ELECTRICALS |
| Brand | Atlas |
| Product Name | Cyclo Gear Motor |
| Operation | Cycloidal speed reducer with motor operation |
| Working Principle | The input shaft is eccentrically mounted to the bearing causing the cycloidal disc to rotate, resulting in steady rotation of the output shaft from wobbling movement of the disc. |
| Range Ratio | 11, 17, 23, 29, 35, 43, 59, 71, 87 |
| Horsepower Range | Three Phase: 0.37 to 5.5 KW (0.37 to 10 HP) Single Phase: 0.1 to 2.2 KW (0.15 to 3 HP) |
| Mounting Types | Foot Mounting Flange Mounting |
| Frame Material | Robust cast iron frame with integral feet |
| Shaft | Single-piece, case carburized alloy steel, super finished |
| Oil Seals | Superior quality oil seals ensuring complete oil tightness |
| Lubrication | Automatic splash lubrication with synthetic lubricant |
| Applications |
Conveyors Packaging Systems Crane Travel Material Handling Lifts Machine Tools |
| Features |
Excellent performance with high efficiency Long life Impact-resistant Wide output reduction ratio Stable running with low noise |
Product Features & Configuration
Amit Electricals manufacture, exporter and supplier of cycloidal speed reducers. Industry experience in this field enabled us to provide a wide range of Cycloidal speed reducers to our reputed clients. The offered Cyclo Gear motors are widely applicable and demanded. Cycloidal speed reducer is Combination of Cyclo Gear and Motor. Amit electrical has excellent technological strengths and production facilities.
Working Principal
Cycloidal reducers working principal is simple. The input shaft is mounted eccentrically to bearing causing the cycloidal disc to move in a circle. Cycloidal reducers disc will independently rotate around the bearing as it is pushed against the ring gear. The number of pins on the ring gear is larger than the number of pins on the cycloidal disc. It need to accurate machining. This causes the cycloidal disc to rotate around the bearing faster than the input shaft is moving it around, giving an overall rotation in the direction opposing the rotation of the input shaft. The cycloidal disc has holes that are slightly larger than the output roller pins that go inside them. The output pins will move around in the holes to achieve steady rotation of the output shaft from the wobbling movement of the cycloidal disc.
Features
- Excellent performance and high efficiency
- Long life
- Strong against impact
- Wide output reduction ratio, large torque and good capability of enduring overloads
- Running stably, low noise and wearing well Wide applicability.
Range Ratio
We having Wide Range in Cyclo Gear Motor it Range Ratio 11, 17, 23, 29, 35, 43, 59, 71 and 87
Hp. Range
We are manufacturing Cyclo Gear Motor
Three Phase Cycloidal speed reducer
K W 0.37 to 5.5 (0.37 To 10 Hp) in for 415 ± 5% volts 50 HZ ± 3% other voltage and frequency also we can supply on demand.
Single Phase Cyclo Gear Motor
K W 0.1 to 2.2. (0.15 To 3 Hp) in 215 ± 5% volts 50 HZ ± 3% other voltage and frequency also we can supply on demand.
Mounting
Cyclo Gear Motor are Available in Foot and Flange Mounting for Various application
Body
Cycloidal Gear Motor body is made by a robust, rugged cast iron frame with integral feet. It provides long life.
Shaft
Shaft id of single piece accurately made out of case carburized alloy steel. Solid with shaft made of high-grade alloy steel so as to give hardware resisting surface duly case hardened & super finished. The Bearing & Oil Seal generals are accurately, cylindrically Ground to give smooth running.
Oil seals
Cyclo Gear Motor Superior quality oil seals are user to ensure complete oil tight.
Lubrication
Gear and bearing are automatically and positively lubricated by means of serially selected synthetic lubricant at all speed by splash of their lubricant from the sump. Thus no special attention is necessary for long time of gear lubrication
Application
Conveyors, Packaging, Crane travel, Material handling lift, Machine tools application.
