AC Fail Safe Brake
| Category | Details |
|---|---|
| Company Name | AMIT ELECTRICALS |
| Brand | Atlas |
| Product Name | AC Fail Safe Disc Brake |
| Operation | Electromagnetic disc brake operates on AC supply and is fail safe |
| Brake Type | Fail Safe (Power off - Brake applied) |
| Range of Production |
Torque Range: 0.2 to 30 KGM Suitable for: 0.1 to 20 HP Diameter: 130 to 310 MM |
| Mounting Types | Directly mounted at non-driving end shaft of the motor |
| Frame Material | Liner plates with square hole and square hub; durable and compact design |
| Insulation | Class F enamel copper wire for coil winding |
| Ratings | Suitable for continuous and fail-safe applications |
| Voltage & Frequency | Available in 415V, 380V, and 230V AC |
| Protection | Brake releases when current is applied; manual release available on request |
| Shaft & Rotor | Square hub keyed to shaft; liner plate free on hub |
| Bearings & Lubrication | Not applicable |
| Thermal Overload Protection | Not applicable |
| Terminal Box | Not specified |
| Earthing Terminals | Not specified |
| Application |
Machine Tools Hydro Extractors Wire Drawing Machines Rubber Mixing Mills Rolling Mills Printing Machines Cement, Mining, Sugar, Textile, Material Handling Hoists, Cranes, Winches, Elevators (in case of power failure) |
| Features |
Speedy performance Noise-free Longer functional life |
Product Features & Configuration
Amit Electricals Manufacture, supplier and Exporter of Electromagnetic A c fail safe disc brake. We offer Braking Solution for Crane and Machinery with Fail safe brake. we are offer full range of standard fail safe brake. it also calls disc brake, Ac fail safe brake electrometric disc brake, Hoist Brake, Crane Brake, lift brake Ect.
Design

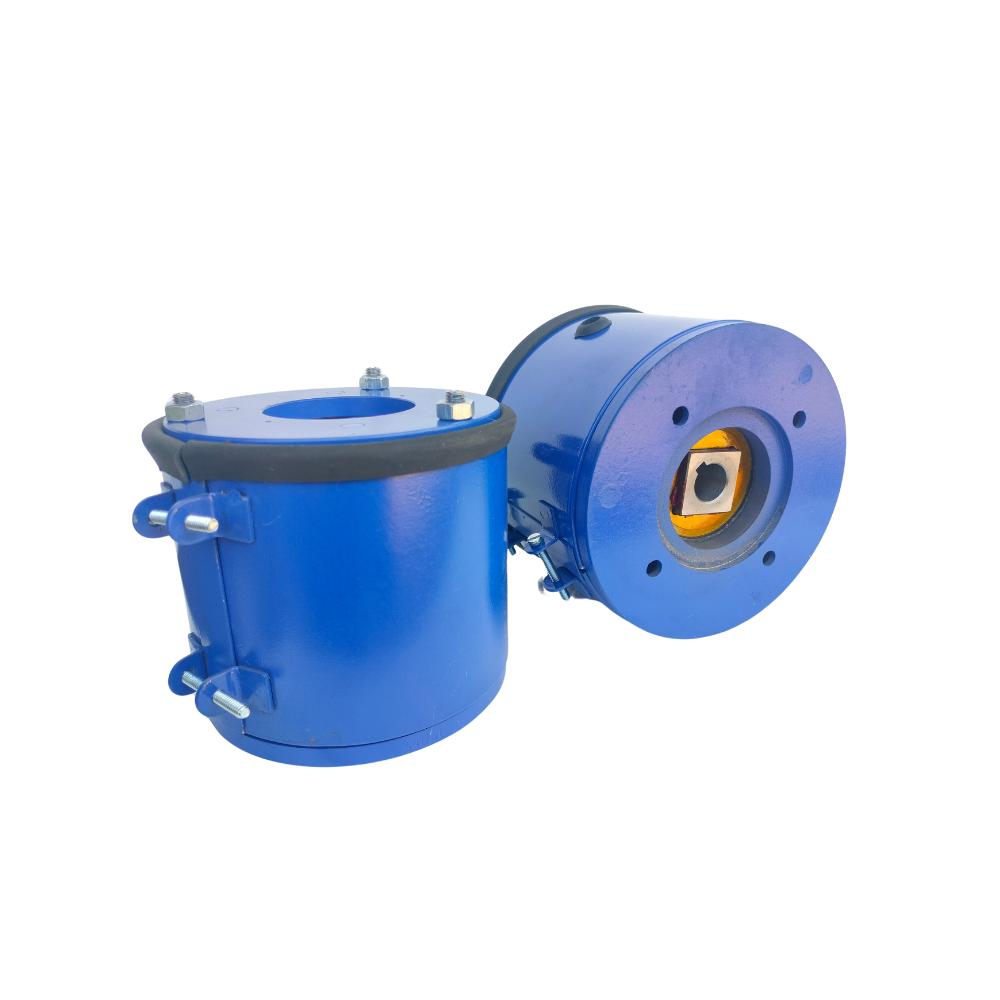

Our of Electromagnetic A c fail safe disc brake are compact and modern in design. Directly mounted at non-driving end shaft of the motor. It consists of liner plates Brake Disc with square hole at the center. One corresponding piece of square hub is supplied with the brake. This hub is keyed to the motor shaft and the liner plate is free on this hub. Normally liner plate is gripped between two discs with the help of spring pressure. They work on A.C. Supply when the current is supplied on the brake, one disc is attracted by electromagnet against pressure and the liner plate is released. Thus the brakes are “off”. Once the brake is set it does not require adjustment or maintenance. When the liner plates wear with the use then only air gap is required to be maintained periodically. An arrangement to release the brake manually could be provided on request.
Application
Used in Machine Tools, Hydro Extractors, Coil winding Machines, Wire Drawing Machines, Rubber Mixing Mills, Rolling Mills, Printing Machines and in many other industries such as a Cement, Mining, Sugar, Textile, Material Handling etc..In case of power failure in machines like Hoists, Cranes, Winches, Elevators, etc.. Application of brake is must. We offer AC type brakes, called fail safe brake, as in case of power failure, these brakes apply mechanically.
Torque Range
Our of Electromagnetic A c fail safe disc brake torque Range 0.2 to 30 KGM. it Suitable to 0.1 to 20 Hp.
Diameter Range
Ac fail safe disc drake diameter 130 to 310 MM.
Voltage
We are Manufacture fail safe Brake in 415,380 and 230 VAC.
Coil
Fail Safe Brake Coil are Made by “F” Class high Quality enamel copper wire. For Longer Operation prevent temperate.
Features
Speedy performance
Noise free
Longer functional life
Bearings & Lubrication
Single phase motor Bearings are adequately lubricated with lithium based high temp up to 150deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.
Enclosure
Single phase motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooling).
Thermal Over protection
We can also supply motor with T.O.P Switch on Demand of Customer. It can provide Single phase motor extra safety form over lord protection.
Terminal Box
All Single phase Motor Supply with Terminal box on top position For Foot mounted (B3). Others position terminal box like left or right supply on customer request.
Earthing Terminals
All Single Phase Motor provided with minimum two earthling terminals. One in the terminal box and other on foot.
Paints
All Single-phase motors are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.
